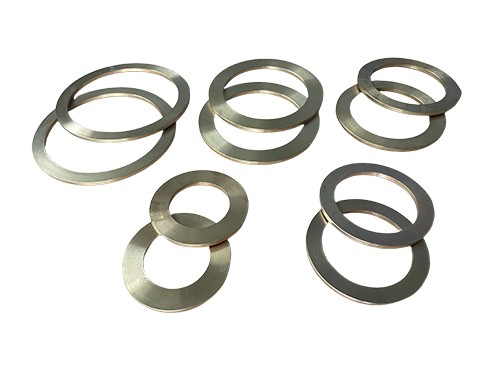

Separation Ring

◎ Material: UNS C93200

◎ Tensile Strength (σb): 241 N/mm²

◎ Yield Strength (σ0.2): 97 N/mm²

◎ Elongation (δ5): 15%

◎ Function:

◎ The separation ring helps position and support the packing rings, ensuring they stay in place and function correctly. It maintains the proper spacing between individual packing rings, which is essential for effective sealing.

◎ By evenly distributing the pressure exerted by the packing gland, the separation ring helps to ensure that the packing material is uniformly compressed.

◎ The separation ring minimizes wear on the packing by preventing excessive movement and misalignment.
